When your child's ride-on car powers on but won't move, fails to steer, or doesn't respond to the parental remote, the mainboard or speed controller may be faulty. However, these issues can also be caused by a weak battery, loose wiring, or a faulty motor.
What Does the Mainboard/Speed Controller Do?
The mainboard, also known as the speed controller, is one of the most important electrical components in a ride-on car. It receives signals from the accelerator pedal and parental remote control, then directs power to the motors and steering system.
When the mainboard malfunctions, the vehicle may power on but fail to move, respond incorrectly to controls, or experience problems with steering and remote connectivity.

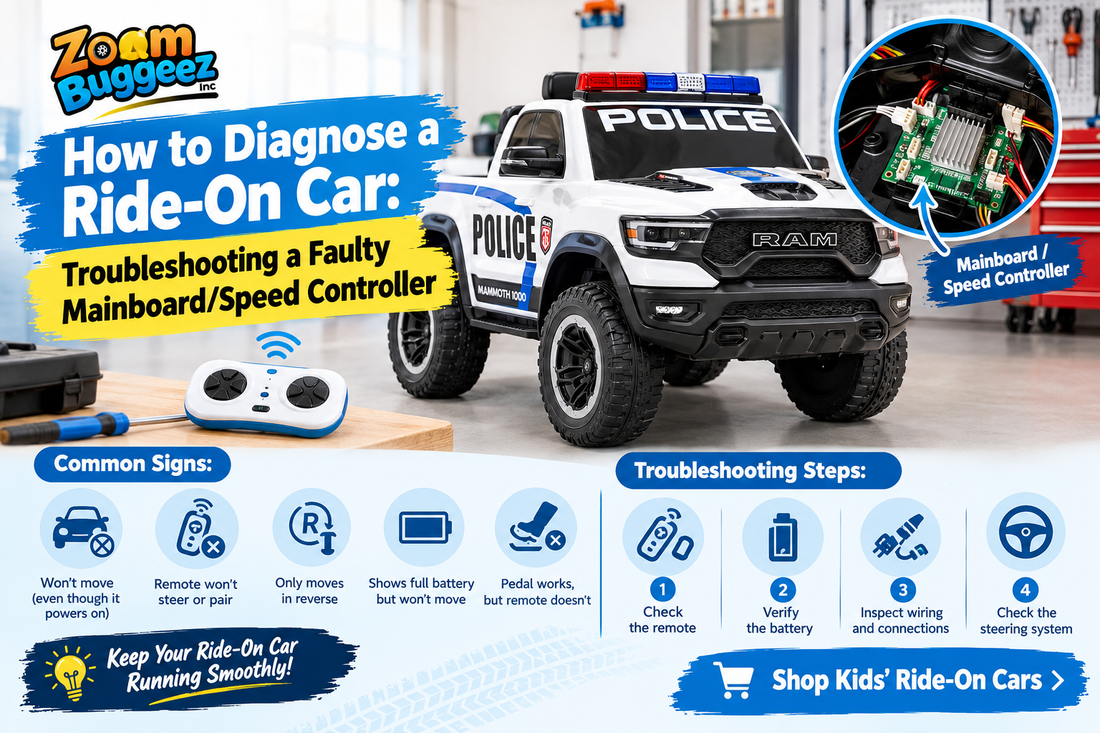

Common Signs of a Faulty Mainboard or Speed Controller
Watch for these common symptoms:
1.Vehicle powers on but won't move: The lights or dashboard may work, but the car does not drive forward or backward.
2.Steering does not respond: The vehicle moves but does not turn left or right when commanded by the remote control.
3.Remote control won't pair: The parental remote cannot connect to the vehicle despite following the pairing instructions.
4.Vehicle only moves in reverse: The car may reverse normally but fail to move forward.
5.Battery indicator shows full, but the car won't move: The vehicle appears fully charged but does not respond to driving controls.
6.Pedal works, but remote control doesn't: The car drives using the pedal, but the parental remote fails to control it.
How to Troubleshoot the Problem
Step 1: Test the Parental Remote Control
If your ride-on car supports both manual pedal operation and parental remote control, test both driving modes.
1.Turn on the vehicle and follow the manufacturer's instructions to pair the remote control.
2.Try operating the car using the remote.
3.Test the pedal separately, if applicable.
What the results may indicate:
1.If the car works normally with the remote, the mainboard may be functioning, and the pedal or pedal switch could be the problem.
2.If the pedal works but the remote does not, check the remote's batteries, pairing procedure, and compatibility before suspecting the mainboard.
3.If neither the pedal nor the remote operates the vehicle, continue with the battery and wiring checks.
Step 2: Check the Battery Voltage
A weak or damaged battery can cause symptoms similar to a faulty speed controller. The dashboard or battery indicator may show a full charge even when the battery cannot supply enough power under load.
To check the battery:
1.Make sure the vehicle is switched off.
2.Check that the battery has been charged according to the manufacturer's instructions.
3.Inspect the battery terminals and connectors for loose connections or corrosion.
4.If you have a suitable multimeter and know how to use it safely, measure the battery voltage and compare it with the manufacturer's specifications.
If the battery voltage is too low or drops significantly when the vehicle is operated, the battery may need further testing or replacement.
Tip: Do not replace the mainboard until you have ruled out battery and power-supply problems.
Step 3: Inspect the Mainboard Wiring and Connections
Loose or disconnected wires can prevent the controller from communicating with the motors, pedal, steering system, or remote receiver.
Follow these steps:
1.Switch off the vehicle and disconnect the battery before inspecting electrical connections.
2.Locate the mainboard or speed controller according to the product manual.
3.Check that all plugs and connectors are securely attached.
4.Look for loose wires, damaged insulation, bent connector pins, or signs of overheating.
5.Reconnect any loose plugs only when the battery is disconnected, and make sure each connector is returned to the correct position.
Never force a connector into place or connect wires based on colour alone. If you notice burnt components, melted wires, or damaged connectors, stop troubleshooting and seek qualified assistance.
Step 4: Troubleshoot Steering Problems
If the ride-on car drives forward and backward but cannot turn left or right, the problem may involve the steering mechanism, steering motor, wiring, or mainboard.
Check the following:
1. Inspect the steering rod bolt
Make sure the steering rod bolt is properly secured. A loose bolt or disconnected linkage can prevent the wheels from turning correctly.
2. Check the steering motor connection
With the vehicle switched off and the battery disconnected, inspect the steering motor plug and wiring. Confirm that the connector is secure and that the wires are not damaged.
3. Test the steering function
After completing the visual checks and safely reconnecting the battery, test the steering according to the manufacturer's instructions. Keep hands, tools, and loose objects away from moving parts.
If the steering linkage is secure and the steering motor connections appear normal, but the vehicle still does not respond to steering commands, the mainboard or speed controller may be faulty.
Step 5: Diagnose Forward and Reverse Driving Problems
A ride-on car that only moves in reverse, or refuses to move in either direction, may have a controller issue. However, the direction switch, accelerator pedal, wiring, or motor can also cause similar symptoms.
Try these checks:
1.Confirm that the forward/reverse switch is set correctly.
2.Check the pedal and direction-switch connections with the battery disconnected.
3.Inspect the motor wiring for loose or damaged connections.
4.Check whether the vehicle responds differently when using the pedal and parental remote, if both modes are available.
If the vehicle consistently operates in reverse but not forward after these checks, the mainboard may not be sending the correct signal to the drive motors.
Avoid repeatedly pressing the accelerator or forcing the vehicle to operate when it is malfunctioning.
When Should You Replace the Mainboard?
If the battery, wiring, remote control, and relevant motors or switches have been checked but the problem continues, the mainboard or speed controller may need replacement.
Important: Always choose a replacement compatible with your ride-on car's model and voltage. Consult your owner's manual or a qualified technician if you're unsure.
Conclusion
A faulty mainboard or speed controller can cause several ride-on car problems, including loss of movement, steering failure, remote-control issues, and incorrect driving direction. However, similar symptoms can also be caused by a weak battery, loose wiring, a faulty pedal switch, or a malfunctioning motor.
By checking the remote control, verifying the battery, inspecting connections, and testing the steering system, you can narrow down the possible cause before purchasing replacement parts.
